How it's made

Apollo Machinery Ltd.

Too Wall by Faust Solutions

Hydraulic Manifolds - Custom and Standard

Hydraulic Flanges

schematic

Consulting

  Design

design generated
Prep

The Material is cut from Bar or Slab at this point. and milled to final outside Dimensions. Long Holes are Gun-Drilled.

gun drilling
100_0246

CNC G-Code Program is written and CNC Machine Set-Up done,

VF3-2
Loading

Parts are loaded and machined.

machining 2
Machine it

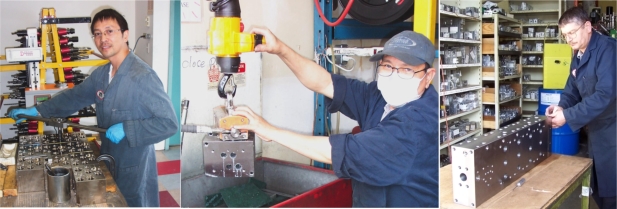

Parts being deburred, washed and inspected.

inspection
